EndsWithPatternInputFormatWord is used to parse an MS Word file where the end of each record is identified by a specific regular expression pattern.

Configuration

The configuration consists of the following parameters:

• hgrid247.record.endPattern
  Indicates the regular expression pattern that marks the end of a record.
• hgrid247.record.patternFlag
  Indicates the regular expression pattern flag.
  • Default value: MULTILINE
  • Multiple flags can be specified using the | separator

Example

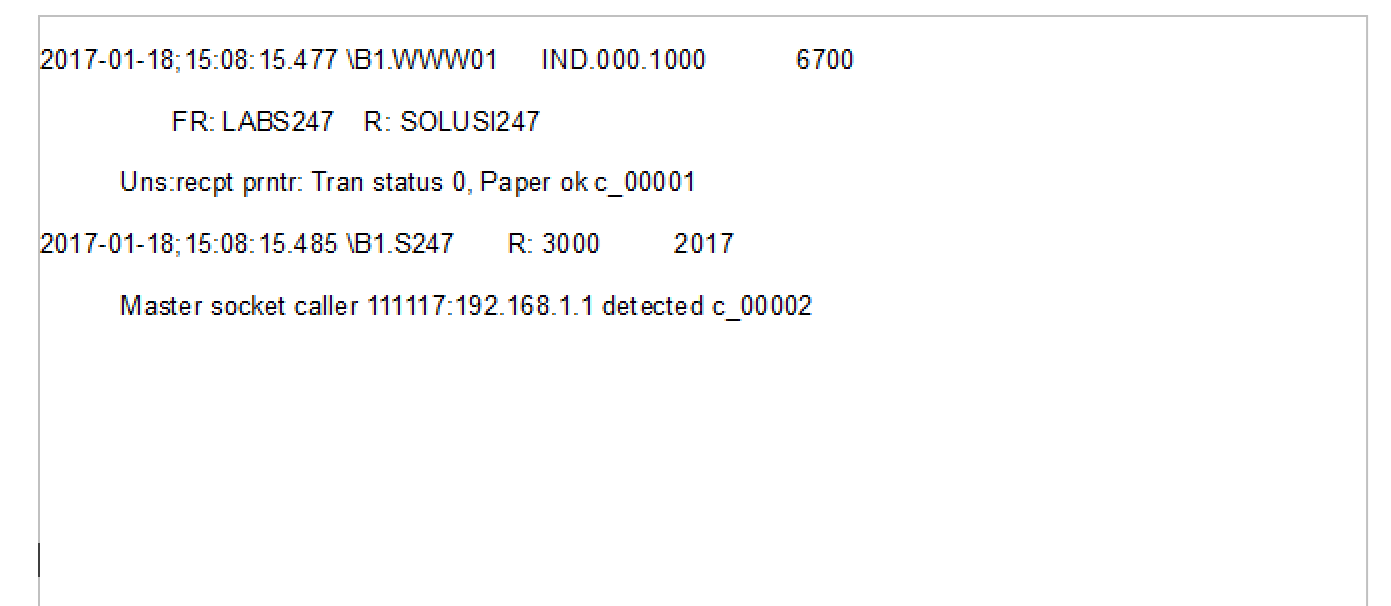

MS Word Document Content

Configuration Used

Configuration Name	Configuration Value
hgrid247.record.endPattern	\\sc_\\d\\d\\d\\d\\d

Result

Record 1

 2017-01-18;15:08:15.477 \B1.WWW01      IND.000.1000            6700

                  FR: LABS247    R: SOLUSI247

           Uns:recpt prntr: Tran status 0, Paper ok c_00001

Record 2

  2017-01-18;15:08:15.485 \B1.S247       R: 3000          2017

           Master socket caller 111117:192.168.1.1 detected c_00002

Behavior

• Reads MS Word documents as plain text
• Accumulates content until the end-pattern is matched
• Treats each matched block as a single record
• Outputs records exactly as extracted from the document

Typical Use Cases

• Parsing transaction logs stored in Word documents
• Extracting multi-line records from formatted reports
• Processing Word-based operational or audit documents in ETL workflows
